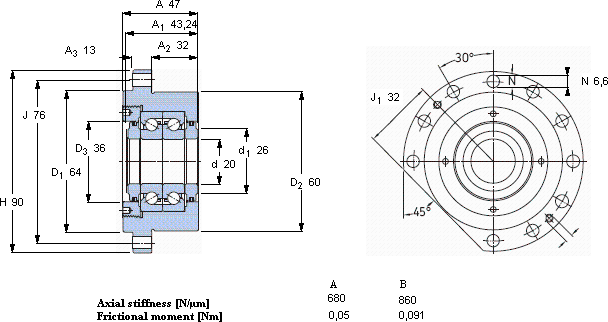

SKFFBSA 204/ DF參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 20 | 60 | 47 | 22 | 49 | 1,8 | 7600 | 3800 | 1,1 | FBSA 204/ DF | BSDU 220 FF | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 204/ DF屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：20，外徑：60，厚度47，SKFFBSA 204/ DF主要應用于碾煤機、等領域。如果您需要購買或者了解更多關于SKFFBSA 204/ DF的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 204/ DF近似型號
- SKF 32040 X 尺寸：200mm × 310 × 70 類型：圓錐滾子軸承 備注：單列
- SKF 6204-2ZNR * 尺寸：20mm × 47 × 14 類型：深溝球軸承 備注：單列，帶止動環槽
- SKF RNA 2204.2RS 尺寸：25mm × 47 × 17.8 類型：滾輪軸承 備注：不帶法蘭圈支承滾子，無內圈
- SKF 6204/HR11TN 尺寸：20mm × 47 × 14 類型：工程產品 備注：聚合物球軸承,單列球軸承
- SKF 32048 X 尺寸：240mm × 360 × 76 類型：圓錐滾子軸承 備注：單列
- SKF NUP 204 ECPHA 尺寸：20mm × 47 × 14 類型：圓柱滾子軸承 備注：單列
- SKF BSD 2047 CG 尺寸：20mm × 47 × 15 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKF 2204 E-2RS1TN9 尺寸：20mm × 47 × 18 類型：自調心球軸承 備注：圓柱孔和圓錐孔
- SKF TVN 204 A 尺寸：20mm × 150 × 35 類型：TVN立式軸承座組座 備注：TVN立式軸承座組座
- SKF YAT 204-012 尺寸：19.05mm × 47 × 25.5 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKFFBSA 204/ DF相關型號
- SKFFBSA 209/ QFC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DB 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QFC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DB 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DF 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DF 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
