SKFFBSA 206/ QBC參數

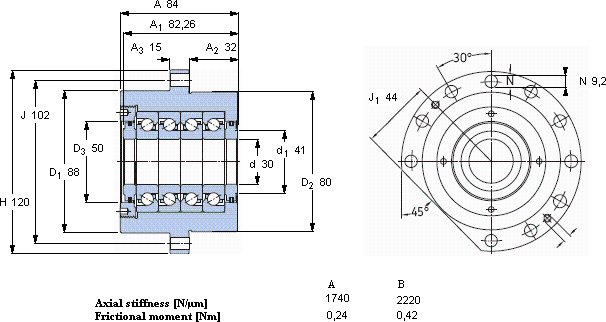

| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 30 | 80 | 84 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,5 | FBSA 206/ QBC | BSQU 230 TDT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 206/ QBC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：80，厚度84，SKFFBSA 206/ QBC主要應用于機械設備、等領域。如果您需要購買或者了解更多關于SKFFBSA 206/ QBC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 206/ QBC近似型號
- SKF YEL 206-103-2FCW 尺寸：30.163mm × 62 × 18 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF YEL 206-101-2FCW 尺寸：26.988mm × 62 × 18 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF 7206 ACD/HCP4A 尺寸：30mm × 62 × 16 類型：Angular contact ball bearings 備注：角接觸球軸承, 精密
- SKF YEL 206-102-2FCW 尺寸：28.575mm × 62 × 18 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF 206-2ZNR 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：單列，帶裝球缺口和止動環槽
- SKF 7206 ACD/P4A 尺寸：30mm × 62 × 16 類型：Angular contact ball bearings 備注：角接觸球軸承, 精密
- SKF YAR 206-102-2F/AH 尺寸：28.575mm × 62 × 38.1 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF 7206 BECBY 尺寸：30mm × 62 × 16 類型：角接觸球軸承 備注：單列
- SKF YAT 206-103 尺寸：30.163mm × 62 × 31 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF 32064 X/DF 尺寸：320mm × 480 × 200 類型：圓錐滾子軸承 備注：單列，面對面配對
- SKFFBSA 206/ QBC相關型號
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QFC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QBC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DB 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC推薦型號
- STEYR 16036 尺寸：180mm × 280 × 31 類型：
- BARDEN 71915C 尺寸：75mm × 105 × 16 類型：
- DKF 7021AC 尺寸：105mm × 160 × 26 類型：
- BARDEN 7032AC/DB 尺寸：160mm × 240 × 76 類型：
- DKF 7306B/DB 尺寸：30mm × 72 × 38 類型：
- NTN AS160200 尺寸：160mm × 200 × 1 類型：
- STEYR 30218 尺寸：90mm × 160 × 30 類型：
- NTN UKFU326+H2326 尺寸：115mm × 121 × 410 類型：
- KINGON K8×16×5 尺寸：8mm × 16 × 5 類型：
- SKF LM806649/610/Q 尺寸：53.975mm × 88.9 × 19.05 類型：
