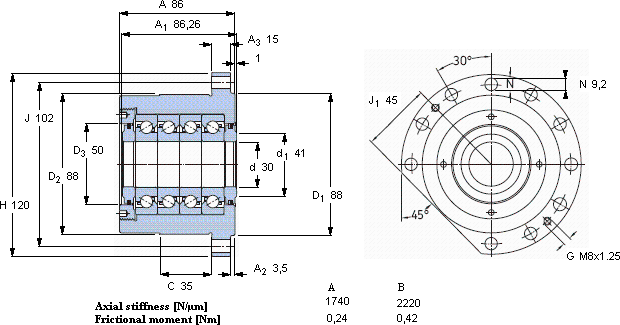

SKFFBSA 206 A/ QBC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 30 | 88 | 86 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,7 | FBSA 206 A/ QBC | BSQU 230/1 TDT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 206 A/ QBC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：88，厚度86，SKFFBSA 206 A/ QBC主要應用于減速機、等領域。如果您需要購買或者了解更多關于SKFFBSA 206 A/ QBC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 206 A/ QBC近似型號
- SKF 5206 A-2Z * 尺寸：30mm × 62 × 23.8 類型：角接觸球軸承 備注：雙列
- SKF YEL 206-104-2F 尺寸：31.75mm × 62 × 18 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF FBSA 206 A/ QFC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF TVN 206 WA 尺寸：30mm × 190 × 50 類型：TVN立式軸承座組座 備注：TVN立式軸承座組座
- SKF YAR 206-2FW/VA201 尺寸：30mm × 62 × 38.1 類型：Y-軸承 備注：用于高溫
- SKF W 6206 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：單列，不銹鋼
- SKF 51206 V/HR22Q2 尺寸：30mm × 52 × 16 類型：工程產品 備注：聚合物球軸承,推力球軸承
- SKF YHB 206-100-2LS8W/VT357 尺寸：25.43mm × 62 × 30 類型：Y-軸承 備注：帶六角或方形孔
- SKF 6206-2Z/VA201 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：用于高溫的深溝球軸承
- SKF CR 33206 尺寸：84.15mm × 126.97 × 11.13 類型：徑向軸密封件 備注：徑向軸密封件
- SKFFBSA 206 A/ QBC相關型號
- SKFFBSA 210 A/ QFC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DB 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DF 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DB 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DF 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QBC推薦型號
- SNR 7012C 尺寸：60mm × 95 × 18 類型：
- KOYO 7324B 尺寸：120mm × 260 × 55 類型：
- NTN 7009C/DF 尺寸：45mm × 75 × 32 類型：
- NTN 7018C/DF 尺寸：90mm × 140 × 48 類型：
- MRC 7301B/DT 尺寸：12mm × 37 × 24 類型：
- KOYO 23288CAC/W33 尺寸：440mm × 790 × 280 類型：
- NTN BK6020 尺寸：60mm × 68 × 20 類型：
- SNR 2215K+H315 尺寸：65mm × 130 × 31 類型：
- STEYR 51208 尺寸：40mm × 68 × 19 類型：
- STEYR NJ2244 尺寸：220mm × 400 × 108 類型：
