SKFFBSA 205/ QBC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||

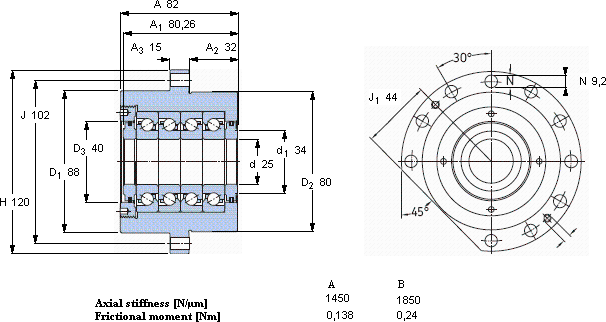

| 25 | 80 | 82 | 36,512 | 104 | 3,86 | 4500 | 2250 | 3,5 | FBSA 205/ QBC | BSQU 225 TDT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 205/ QBC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：25，外徑：80，厚度82，SKFFBSA 205/ QBC主要應用于汽車、等領域。如果您需要購買或者了解更多關于SKFFBSA 205/ QBC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 205/ QBC近似型號
- SKF 332059 尺寸：360mm × 510 × 380 類型：圓錐滾子軸承 備注：四列，TQO結構
- SKF 51205 V/HR22Q2 尺寸：25mm × 47 × 15 類型：工程產品 備注：聚合物球軸承,推力球軸承
- SKF W 6205-2Z 尺寸：25mm × 52 × 15 類型：深溝球軸承 備注：?jiǎn)瘟?，不銹鋼
- SKF 3205 ATN9 * 尺寸：25mm × 52 × 20.6 類型：角接觸球軸承 備注：雙列
- SKF 51205 V/HR22T2 尺寸：25mm × 47 × 15 類型：工程產品 備注：聚合物球軸承,推力球軸承
- SKF 2205 ETN9 尺寸：25mm × 52 × 18 類型：自調心球軸承 備注：圓柱孔和圓錐孔
- SKF 2205 EKTN9 尺寸：25mm × 52 × 18 類型：自調心球軸承 備注：圓柱孔和圓錐孔
- SKF PCM 200205100 B 尺寸：200mm × 205 × 100 類型：復合干式滑動軸套 備注：帶公制尺寸
- SKF 7205 BECBP * 尺寸：25mm × 52 × 15 類型：角接觸球軸承 備注：?jiǎn)瘟?/dd>
- SKF BSA 205 CG 尺寸：25mm × 52 × 15 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFFBSA 205/ QBC相關型號
- SKFFBSA 210/ QBC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QFC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DB 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QFC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DB 尺寸：35mm × 90 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC推薦型號
- FAFNIR 6304-Z 尺寸：20mm × 52 × 15 類型：
- FAFNIR 6009-2RS 尺寸：45mm × 75 × 16 類型：
- NTN 7236AC 尺寸：180mm × 320 × 52 類型：
- KOYO 7014AC/DB 尺寸：70mm × 110 × 40 類型：
- SNR 7009AC/DT 尺寸：45mm × 75 × 32 類型：
- BARDEN 7024AC/DT 尺寸：120mm × 180 × 56 類型：
- ASK NU1010 尺寸：50mm × 80 × 16 類型：
- NTN NU415 尺寸：75mm × 190 × 45 類型：
- FLT N226 尺寸：130mm × 230 × 40 類型：
- SKF 7334BCBM 尺寸：170mm × 360 × 72 類型：
