SKFFBSA 204/ DB參數

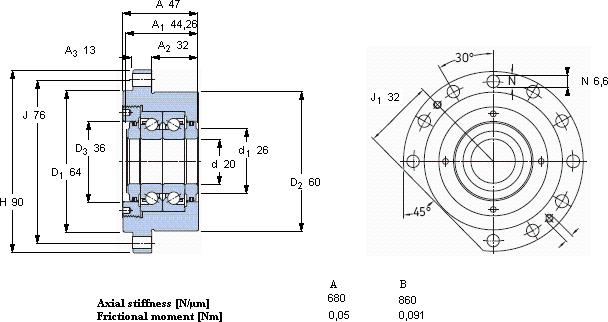

| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 20 | 60 | 47 | 22 | 49 | 1,8 | 7600 | 3800 | 1,1 | FBSA 204/ DB | BSDU 220 DD | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 204/ DB屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：20，外徑：60，厚度47，SKFFBSA 204/ DB主要應用于機床主軸、等領域。如果您需要購買或者了解更多關于SKFFBSA 204/ DB的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 204/ DB近似型號
- SKF YEL 204-2RF/VL065 尺寸：20mm × 47 × 14 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF NUP 204 ECPHA 尺寸：20mm × 47 × 14 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF NF 204 ECP 尺寸：20mm × 47 × 14 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF W 6204-2RS1 尺寸：20mm × 47 × 14 類型：深溝球軸承 備注：?jiǎn)瘟?，不銹鋼
- SKF 32044 X 尺寸：220mm × 340 × 76 類型：圓錐滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF 7204 ACD/P4A 尺寸：20mm × 47 × 14 類型：Angular contact ball bearings 備注：角接觸球軸承, 精密
- SKF NU 204 ECP 尺寸：20mm × 47 × 14 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF 5204 A-2RS1 * 尺寸：20mm × 47 × 20.6 類型：角接觸球軸承 備注：雙列
- SKF YET 212-204 尺寸：57.15mm × 100 × 26 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF 7204 CD/P4A 尺寸：20mm × 47 × 14 類型：Angular contact ball bearings 備注：角接觸球軸承, 精密
- SKF NF 204 ECP 尺寸：20mm × 47 × 14 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKFFBSA 204/ DB相關型號
- SKFFBSA 210/ QBC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DB 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QBC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DF 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DB 尺寸：35mm × 90 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
