SKFFBSA 205/ QFC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||

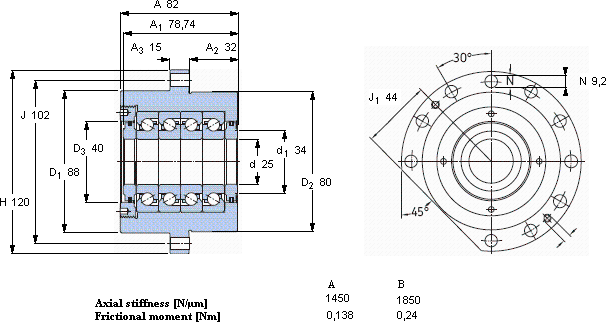

| 25 | 80 | 82 | 36,512 | 104 | 3,86 | 4500 | 2250 | 3,5 | FBSA 205/ QFC | BSQU 225 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 205/ QFC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：25，外徑：80，厚度82，SKFFBSA 205/ QFC主要應用于馬達、等領域。如果您需要購買或者了解更多關于SKFFBSA 205/ QFC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 205/ QFC近似型號
- SKF 7205 BECBM * 尺寸：25mm × 52 × 15 類型：角接觸球軸承 備注：?jiǎn)瘟?/dd>
- SKF 6205 N * 尺寸：25mm × 52 × 15 類型：深溝球軸承 備注：?jiǎn)瘟?，帶止?dòng)環槽
- SKF 2 x 7205 BECBY 尺寸：25mm × 52 × 30 類型：角接觸球軸承 備注：?jiǎn)瘟校糜谂鋵?duì)安裝
- SKF YAT 205-100 尺寸：25.4mm × 52 × 27.2 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF 6205-RSH * 尺寸：25mm × 52 × 15 類型：深溝球軸承 備注：?jiǎn)瘟?/dd>
- SKF FBSA 205/ QBC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF PWTR 2052.2RS 尺寸：20mm × 52 × 24 類型：滾輪軸承 備注：帶法蘭圈支承滾子
- SKF YET 205-100 尺寸：25.4mm × 52 × 15 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF YET 205/VL065 尺寸：25mm × 52 × 15 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF BC4B 320525 尺寸：658mm × 1075 × 650 類型：圓柱滾子軸承 備注：四列
- SKFFBSA 205/ QFC相關型號
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QFC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QFC推薦型號
- NTN 6209-ZN 尺寸：45mm × 85 × 19 類型：
- NTN 61808-2RS 尺寸：40mm × 52 × 7 類型：
- RHP 7205C 尺寸：25mm × 52 × 15 類型：
- GMN 7005AC 尺寸：25mm × 47 × 12 類型：
- DKF 7302B/DB 尺寸：15mm × 42 × 26 類型：
- TORRINGTON 22213CCK/W33 尺寸：65mm × 120 × 31 類型：
- SNR 51136 尺寸：180mm × 225 × 34 類型：
- SKF 32064 尺寸：320mm × 480 × 100 類型：
- STIEBER NU2324 尺寸：120mm × 260 × 86 類型：
- RIV N2213 尺寸：65mm × 120 × 31 類型：
